Mobile Concrete Batching Plants | INS MBS 60 BS - 60 M³/H

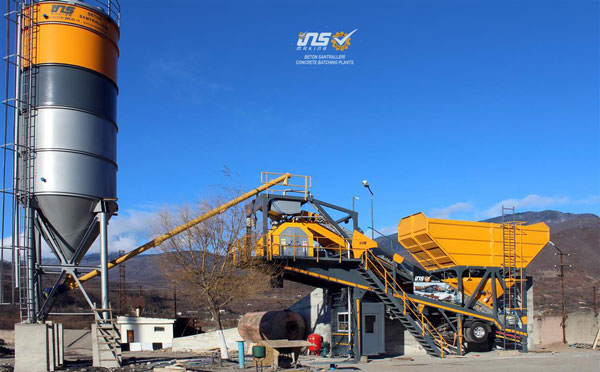

INS MBS 60 BS – 60 M³/H CAPACITY MOBILE CONCRETE BATCHING PLANTS

INS MBS 60 BS Mobile Concrete batching plant produced with 1500/1000 liters single shaft, pan and planet mixers. Produced with planetary mixer. Have a capacity to produce 60 m³/h vibrated Concrete.

TECHNICAL SPECIFICATIONS:

AGGREGATE BUNKER Tanks: 4×10 m3 Total Volume : 40 m3
CEMENT SILO Capacity:60 tons –1 unit
CEMENT SPIRAL CONVEYOR 1 Unit, Size : Ø 219 mm x 8000 mm WAM
CEMENT SILO EQUIPMENTS Upper and Lower Level Meters WAM
AGGREGATE WEIGHING MACHINE 1 m3 Load cell : 4 x 5000 kg, ZMC(HOLAND)
CEMENT WEIGHING TANK Weighing Capacity:600 kg,Load Cell:500 kgx3 , ZMC(HOLAND)
WATER WEIGHING TANK Weighing Capacity:400 kg,Load Cell : 500 kgx2 , ZMC(HOLAND)
ADDITIVE TANK Weighing Capacity:40 kg, Load Cell : 100 kg , ZMC(HOLAND)
AIR VALVES BOARD SEMAKMATIK (ITALY) , Compressr 900 LT /min
CONCRETE PLANT AUTOMATION SIEMENS
COMMAND CABIN 1 Unit, 2.4 x 1.2 x 2.2 m
MIXER 1 m3 Capacity
MIXER OPTIONS Single Shaft Type,planet type,pan type
