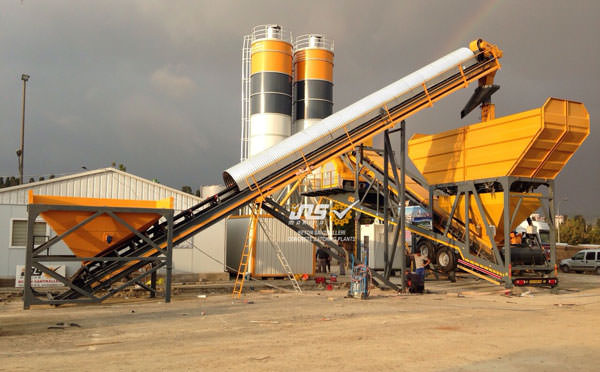

INS MBS-100 BS – 100 M3 H CAPACITY MOBILE CONCRETE BATCHING PLANTS

INS PRO 100 BS Mobile Concrete batching plant produced with 3000/2000 liters twin shaft, single shaft and pan mixers. Have a capacity to produce 100 m³/h vibrated Concrete. Pro 100 is the most featured mobile concrete plant in the sector with its add-ons and differences. Can be used with ramp feeding system or pre-feeding system.

TECHNICAL SPECIFICATIONS:

AGGREGATE BUNKER Tanks: 4×15 m3 Total Volume : 60 m3
CEMENT SILO Capacity:100 tons –2 unit (can optionally be bolted)
CEMENT SPIRAL CONVEYOR 2 Unit, Size : Ø 273 mm x 12000 mm WAM
CEMENT SILO EQUIPMENTS Upper and Lower Level Meters WAM
AGGREGATE WEIGHING MACHINE 4 m3 Load cell : 4 x 5000 kg, ZMC(HOLAND)
TRANSSIT MIKSER LOADING BAND Size: 1 Unit 1000×16000 mm.
CEMENT WEIGHING TANK Weighing Capacity:1100 kg,Load Cell:1000 kgx3, ZMC(HOLAND)
WATER WEIGHING TANK Weighing Capacity:700 kg,Load Cell:1000 kgx2, ZMC(HOLAND)
ADDITIVE TANK Weighing Capacity:50 kg ,Load Cell:100 kg , ZMC(HOLAND)
AIR VALVES BOARD MAG, Compressor 500 LT Volume,
CONCRETE PLANT AUTOMATION Siemens
SILO TOP FILTER (2 UNITS) 24 m² Cylindrical Body,Pressure Tube,Imported 4 cartridge filter
COMMAND CABIN 1 Unit, 2.4 x 3 x 2.5 m
AGITATOR 2 m3 Capacity
AGITATOR OPTIONS Single Shaft Type,planet type,pan type,double shaft type
