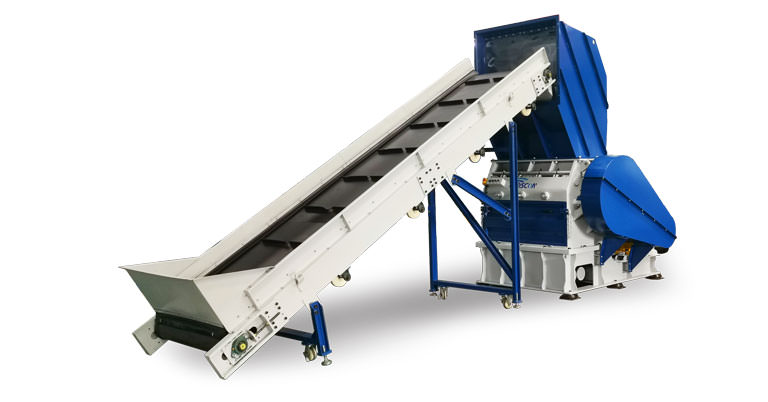

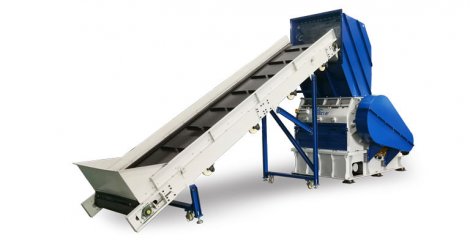

Plastic Crusher / Plastic Granulator

A plastic crusher (plastic grinder) is a very important part of recycling. As per customer request, a crusher for plastic produces between 300– 1500 mm rotor sizes with a capacity between 400 kg/hr to 1500 kg/hr.

Plastic Crusher Application
Plastic lumps, sheets, films, pipes, tails, flashes, bottles, sprues, runners, rejects, etc.

Plastic Granulator Intro
A plastic granulator ensures smooth size reduction of plastic and rubbery products, such as PP, PE, PET, PVC in all sizes. The plastic crusher is usually used as secondary shredding due to its high rotational speed and sharp blades.

Featuring robust welded steel construction and stable operation, but during crushing, metal and similar hard foreign objects are not allowed to be disposed of into crushing chamber. 4 rotors are tailored for versatile applications and producing uniform regrind, whose size is determined by screen opening. The plastic crushing machine offers 2 types of rotors: one for soft plastics and the other for hard plastics.

The resulting regrind can be pneumatically conveyed and collected, forming a simple plastic recycling system with no dust and reduced labour cost.

Plastic Grinder Features:

Rotor blades and counter blades adopt D2 steel.
The main electrical components are trusted brands such as Siemens and Schneider.
Hopper & screen cradle are hydraulically actuated for easy blade & screen replacement.
Rotary and counter blades can be re-sharpened, greatly reducing operating cost.
The screen of the crusher for plastic is easily interchangeable.
