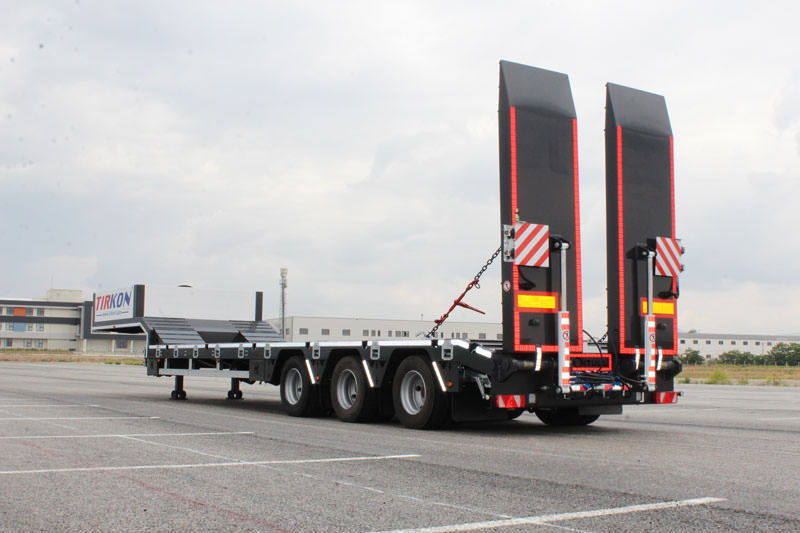

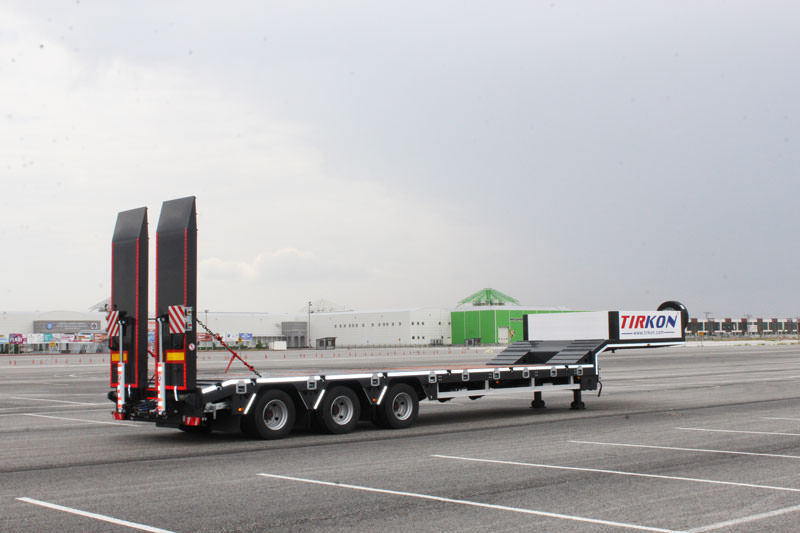

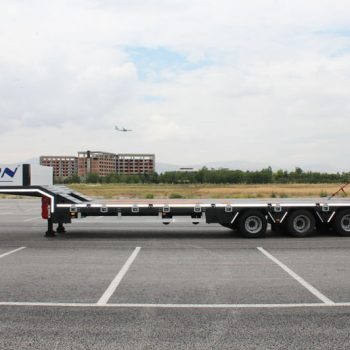

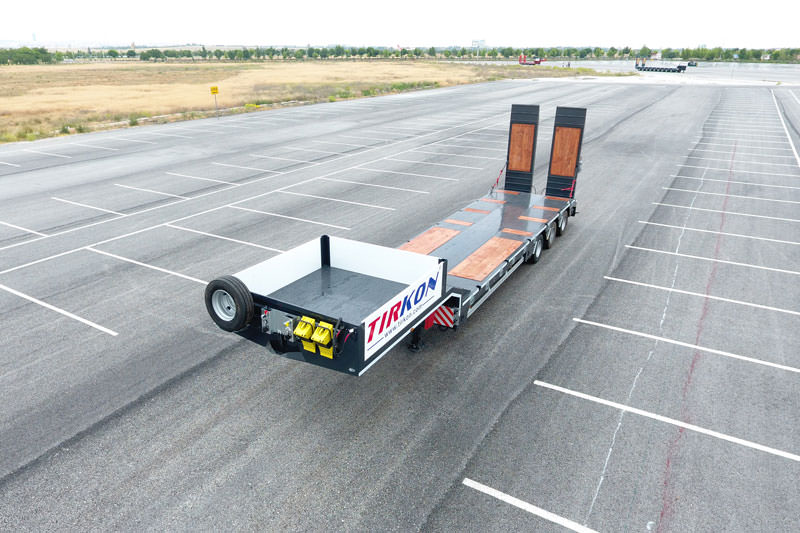

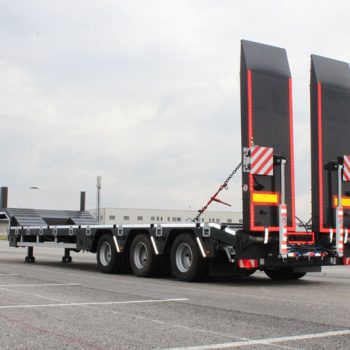

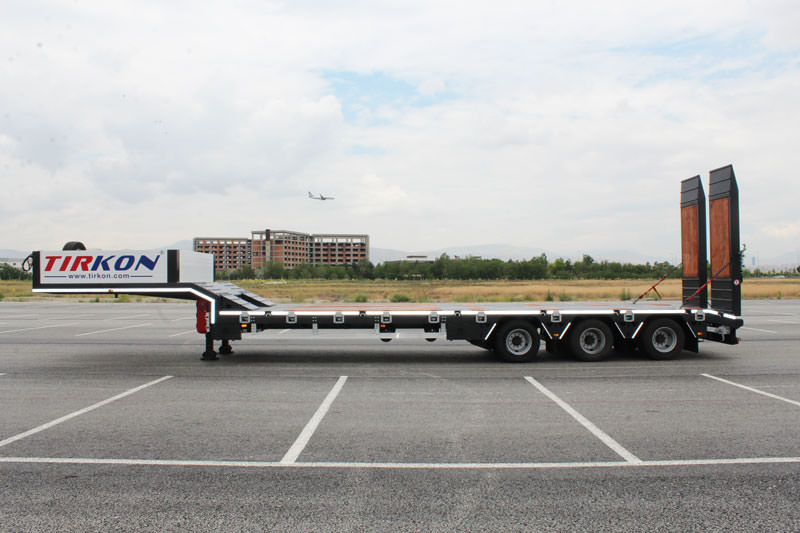

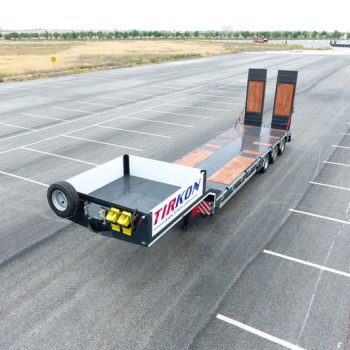

3 AXLES TIRKON LOWBED
Lengh:…………………………………………………….12.400 mm.
Width:………………………………………………………2550 mm.
Technical Axle Load:………………………………….3 x 9.000 kg
Dead Weight Approx :………………………………..11.000 kg
Payload:……………………………………………………40.000 kg
Platform High from Ground:………………………….900 mm
Chassis:……………………………………………………..Longitudal members of I beams and cross members of hot rolled/pressed steel channels of Grade ST 52-3 or equivalent. All other pressed steel channels/plates of Grade ST 37-2 or equivalent.
Gooseneck:……………………………………………..Fixed narrow type goose neck with steel chequered plate flooring where applicable
Deck:……………………………………………………….5/6 mm thick chequered plate flooring supported by suitable cross members where applicable
Axles:………………………………………………………17.5 RIMS , 3 x 9 tons air suspension axles ,one liftable, rear axles steering
Tyres & Rims :………………………………………….245/7/017.5(PIRELLI ,BRIDGESTONE or any other known brand ) with rims 13 pcs.
Brakes: ……………………………………………………KNOR -BREMSE or Wabco® EBS-E / equivalent Twin line drum brakes,
– Two single acting diaphragm brake chambers per axle.
– Service & emergency relay valves.
Landing Gear:…………………………………………..Two speed mechanical telescopic heavy duty .
King-Pin Size:……………………………………………2” dia to SAE standard.( interchangable )
The hight of the king pin:……………………………1200 mm.
Lashing Rings:…………………………………………..Lashing rings on either side of lowbed.
Wood on surface platform:………………………….High resistance 5/6 mm thick chequered plate flooring
Ramps:…………………………………………………….Hyrdrolic ramps single type
Electrical System :……………………………………..24 V electrical system with side lamps led every 2.5 Meter – It has ADR certificate Connectors 15 and 7 pin – 2 unit stop lamp by 7 functionally shall be covered with cage installed by bolts. 2 units import plate illumination lamp Reflectors and velocity plates (with red and white crosses) Rear lamps have steel protection and it can be opened and closed. Rear side lamps will be placed top of bumper. All cables will be hold by cable-holder
